RRR Filter Elements (Water- Depth Filters)

Triple R filters have been tested according to the official multipass test (ISO 4572 and ISO 16889), and have an absolute micron value in compliance with the international filter standards. Studies made by independent oil labs prove that Triple R fine filter elements ensure the best possible oil cleanliness according to ISO 4406:2017 (down to code 11/9/7) and are at the heart of every Triple R Oil Cleaner System and the only way to guarantee absolute filtration effectiveness.

  • Filter elements can be specified in 3, 5 and 10 micron for specific operations.
  • Their filters are designed to remove particles, sludge, and water. Revolutionary media and element design

Product Description

Triple R filters are constructed from specially engineered cellulose media, wound around a central supporting core. (Kind of like a toilet paper roll as our customers remember these filters by)

The combination of Triple R’s special cellulose material and the thickness of the element allows the absorption of water and sludge. The lower part of the element is compressed by a cardboard ring, creating an even finer final filter medium.

The filter design allows the oil to flow under pressure through 114mm of engineered media with 3 distinct stages of filtration and water absorption.

FIRST STAGE > Big particles are retained on the top of the filter

SECOND STAGE > Small particles are trapped in the mid-stage of the filter element

THIRD STAGE > The smallest particles are trapped in the lower and compressed part of the filter.

A card sleeve compresses the lower part of the element to increase the density and a non-woven cloth protects the base and stops particle migration.

Importantly, the cellulose media allows water absorption of up to 200 millilitres within the filter, reducing the water concentration in oil to less than 100 parts per million.

Equally noteworthy is the efficiency of the filter media in removing resins, metals and oxidation products, all of which are extremely damaging to close tolerance components.

This makes Triple R Bypass Filters an all in one OIL CLEANING devices, and not just oil filters!

Triple R Oil Cleaners protect every engine, gas or diesel, transmission and hydraulic systems and come in a range of capacities for every application. Filter elements can be specified in 3, 5 and 10 micron for specific operations.

The Clear Advantage of Triple R Oil Cleaners

A common misconception is that regular oil filter replacement is sufficient to keep oil clean – and equipment well protected. But standard spin on oil filters removes only the largest particles of contamination. In other words, oil is almost never as clean as it should be – or can be. It’s not absolutely clean.

When the oil is passed through a new spin-on oil filter, only solid contamination in the 20-40 micron range is removed. In most applications, this is standard operating procedure. However, the vast majority of damaging solid and liquid contamination is much smaller, 4-7 micron.

DEPTH FILTERS

  • WG Series
    • Depth Filter for Water, water emulsions and use in WS-WD100 (Water Glycol)
      • WG100-H114 (10µm) | TR-25470
        • Suits Housings:
          • BU100/200/300EW
          • SE100NW-YT
          • SS100/200NW-YT
          • OSCA AL100W SERIES
          • SU102W-*R
          • SU103W-*R
        • Dimensions / mm
          • Ø179 x H114
        • Water Capacity / cc
          • Nothing
      • DWG100-H114 (5µm) | TR-25480
        • Suits Housings:
          • BU100/200/300EW
          • SE100NW-YT
          • SS100/200NW-YT
          • OSCA AL100W SERIES
          • SU102W-*R
          • SU103W-*R
        • Dimensions / mm
          • Ø179 x H114
        • Water Capacity / cc
          • Nothing

  • WE Series
    • Depth filter to remove water from oil
      • WE100 | TR-20450
        • Suits Housings:
          • BU100/200/300E
          • SE100N-YT
          • SS100/200N-YT
          • OSCA AL SERIES
          • SU/SS102-*R
          • SU/SS103-*R
        • Dimensions / mm
          • Ø178 x H114
        • Water Capacity / cc
          • 900

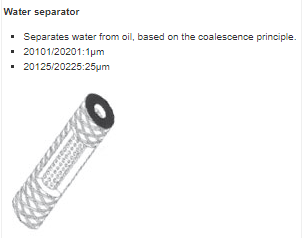

WS Series

Depth Filter for water, water emulsions and WS-WD100

  • WS10 1µm | TR-20101
    • Suits Housings:
      • WS-WD
      • WS-ED-1PF10
    • Dimensions / mm
      • Ø68 x H250
    • Viscosity
      • <46 cSt
  • WS10 25µm | TR-20125
    • Suits Housings:
      • WS-WD
      • WS-ED-1PF10
    • Dimensions / mm
      • Ø68 x H250
    • Viscosity
      • <40 cSt

  • WS20 1µm | TR-20201
    • Suits Housings:
      • OSCA
      • WS-SU103-1R-3WS20
      • WS-SU103-2R-6WS20
    • Dimensions / mm
      • Ø68 x H500
    • Viscosity
      • <46 cSt
  • WS20 25µm | TR-20225
    • Suits Housings:
      • OSCA
      • WS-SU103-1R-3WS20
      • WS-SU103-2R-6WS20
    • Dimensions / mm
      • Ø68 x H500
    • Viscosity
      • <40 cSt



  • WS1pf 10µm | TR-26420
  • WS1pf 25µm | TR-26430

OS Series

Depth Filter for Water, water emulsions and WS-WD100

  • OS10 1µm | TR-26500
    • Suits Housings:
      • OSCA OS SERIES
    • Dimensions / mm
      • Ø70 x H250
    • Viscosity
      • <46 cSt
  • UFOS-10 | TR-28000

Real world testing proves the clear superiority of oil filtered with Triple R Oil Cleaners.
